Collaborative Robot
Time：2017-07-17 frequency：

Collaborative Robot is cooperative manipulator which could be intergrated into existing production environment.
It has 6 axis joints which are very flexible and imtate human arm moving range.
Widely applied for automobile and distribution, electrical device and technology, metal and mechanical machinery, plastic and polymerized products, medicine and chemical, etc
Help customer save cost, increase perfermance, improve production, enhance quality, gain income.

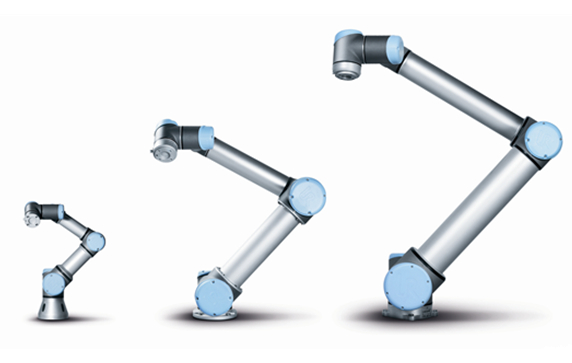

  3KG 5KG 6KG
Repeatability ± 0.03mm ± 0.03mm ± 0.03mm
Temperature 0-50℃ 0-50℃ 0-50℃
Power consumption 90W/150W/250W 90W/150W/250W 90W/150W/250W
Payload 3KG 5KG 10KG
Reach 500mm 850mm 1300mm
Degree of freedom 6 rotary joints 6 rotary joints 6 rotary joints
Manipulator work range max speed work range max speed work range max speed
Base ±360° ±180°/s ±360° ±180°/s ±360° ±120°/s
Shoulder ±360° ±180°/s ±360° ±180°/s ±360° ±120°/s
Elbow ±360° ±180°/s ±360° ±180°/s ±360° ±180°/s
Wrist 1 ±360° ±360° ±360° ±180°/s ±360° ±180°/s
Wrist 2 ±360° ±360° ±360° ±180°/s ±360° ±180°/s
Wrist 3 ±360° ±360° ±360° ±180°/s ±360° ±180°/s
Max speed at tool end   3m/s   3m/s   3m/s
IP classification IP64 IP54 IP54
Noise <65dB(A) comparatively noiseless comparatively noiseless
Assemble method any angle any angle any angle
Input/output power for tool 12V/24V 600mA 12V/24V 600mA 12V/24V 600mA
Area d=128mm d=149mm d=190mm
Material Aluminum, PP Aluminum, PP Aluminum, PP
Weight 11KG 18.4KG 28.9KG
